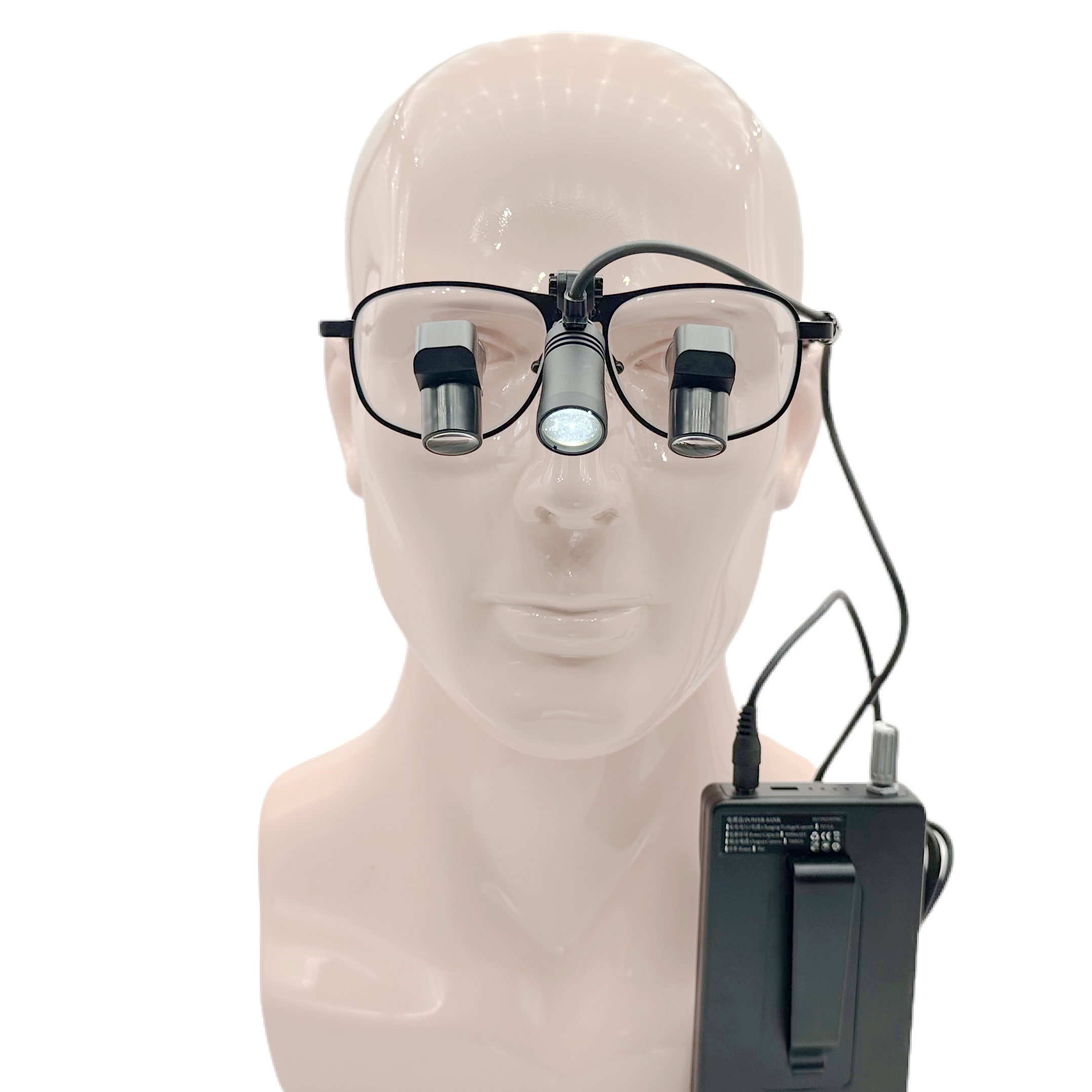

New Design Custom-made TTL Ergo Prismatic Dental Loupes Surgical Loupes 3.5X 4.5X 5.5X 6.5X Titanium Frames With medical Light CHL-JCM-08P-CP Worldwide shipping charge Free
- This item includes TTL Ergo Loupes and Portable medical light CHL-JCM08P-CP

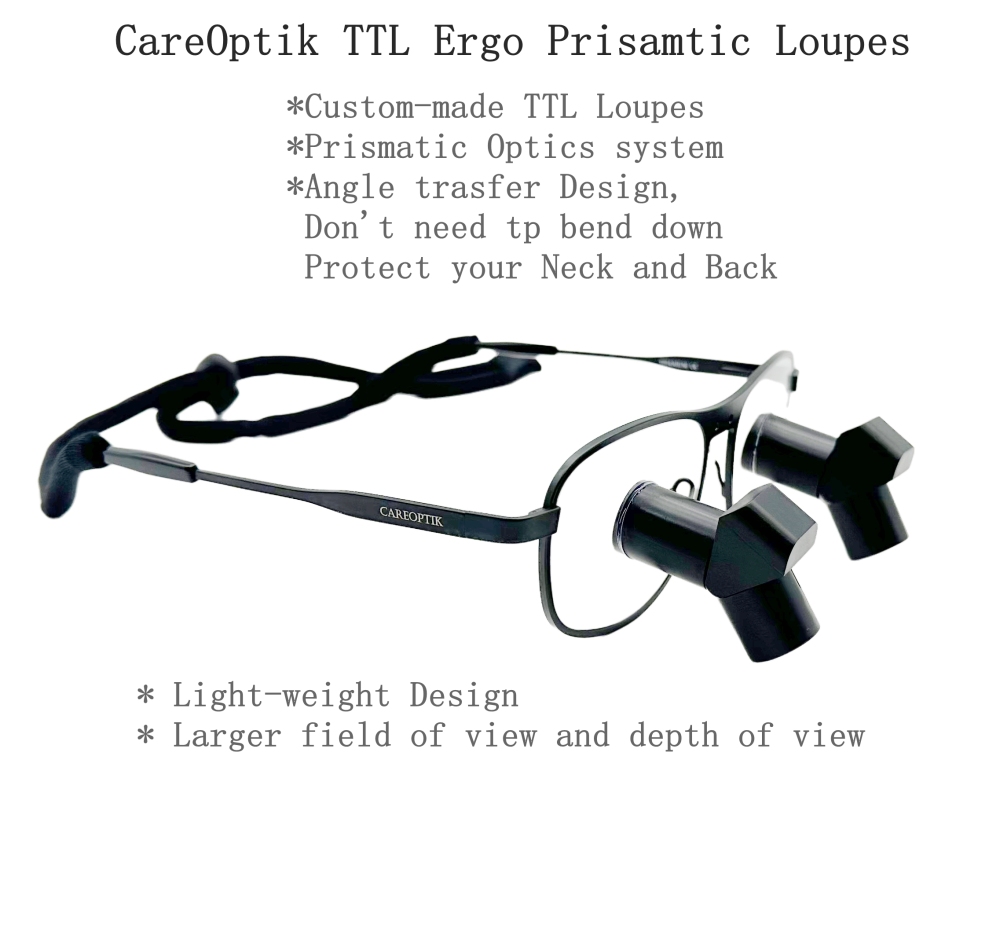

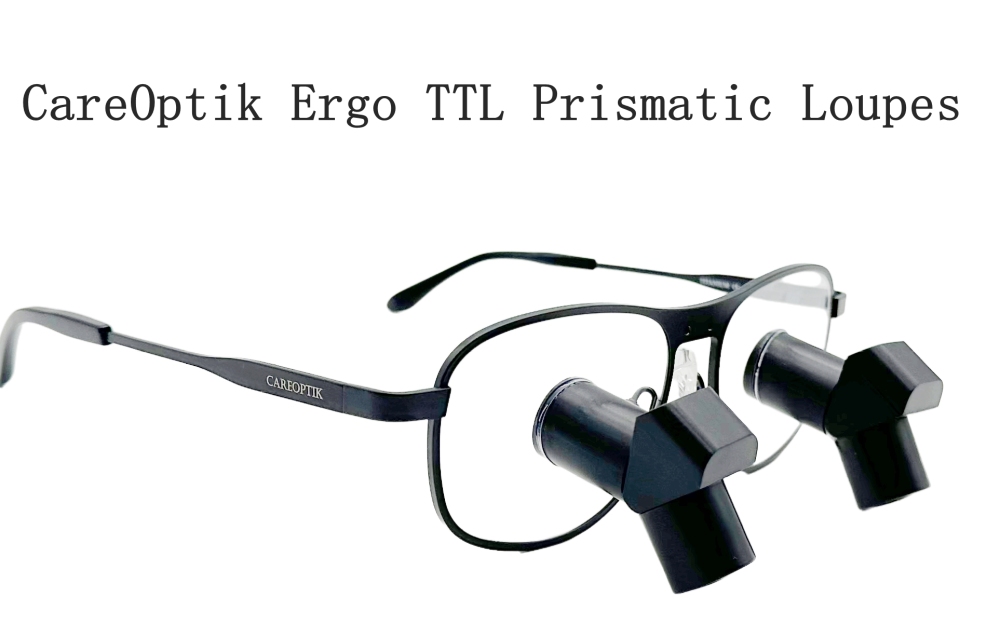

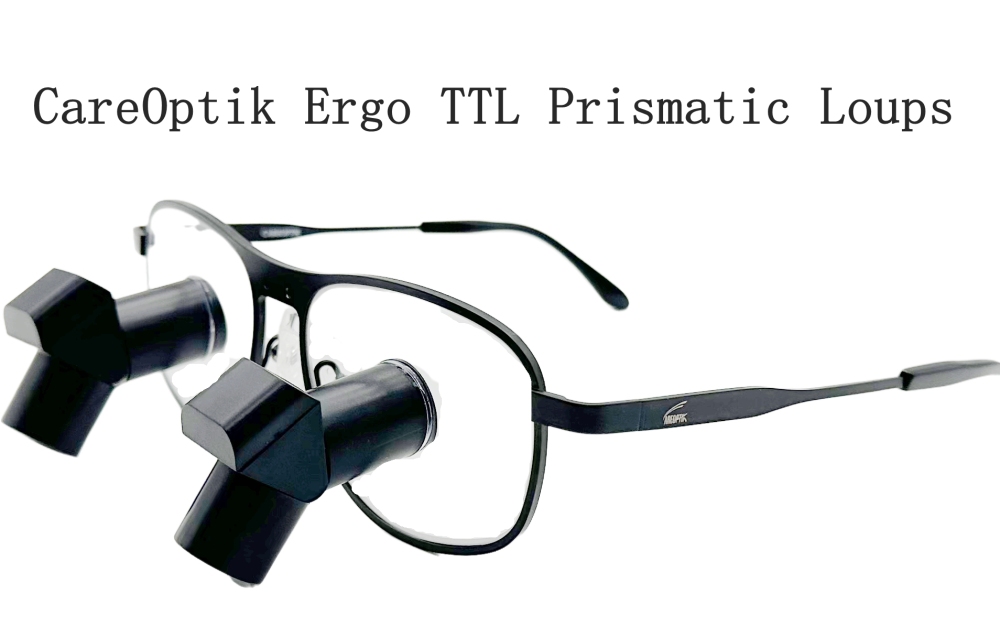

Custom-made Ergo TTL Loupes, Prismatic optics system, Angle Conversion Design, lightweight, large view of fields, and deeper depth of view design.
Using Ergo TTL Prism Loupes, Careoptik Ergo Prismatic Dental surgical loupes are designed to reduce strain on the neck and back by allowing the user to maintain a more natural and comfortable posture during prolonged use. you can work in an upright, relaxed, neutral posture.
Important Notice: Ergo TTL loupes should be Far Pupil distance. not near Pupil distance. For mounting high-quality Ergo TTL Prismatic Loupes, please fill in the Far and Near pupil distance data.
• Working Distance: New Design Ergo TTL Prismatic loupes working distance is the larger working distance covered
range 280mm- 600mm. choosing the working distance for mounting loupes to get the best focus for the user.
S:280mm-380mm; R: 360mm-460mm;
L: 440mm-540mm; XL: 500mm-600mm
• Pupil Distance: Near Pupil distance is very important for custom-made Ergo TTL loupes, so, when you order, please Fill in the correct Far/Near pupil distance, if you have no pupil distance data, you can measure your Pupil distance (Far and Near Pupil distance) at the optical lab Or via the App "PDCHECK AR"
• Mounting Prescription Lens: This new custom-made Ergo TTL loupes can be mounted prescription lens (Rx lens), that will mount prescription lens (RX lens) on loupes Barrels and loupes frames. Cylinder Power prescription lenses are also acceptable.
• If you need to mount Prescription lenses, must choose" mounting prescription lenses "YES" And then fill in the Prescription lens data. ( Don't forget mark PLUS"+" or MINUS "-" For the prescription lens Data)
- TTL through the lens style Ergo Prismatic Loupes, Titanium frames.Easy using, high quality, custom-made loupes, don't need to adjust anymore, super lightweight,
Custom-made TTL (through the lens ) Ergo Prismatic medical loupes are widely used in dentistry, hygiene, surgery Department of Stomatology, ENT department, general surgery, cervical spine Department of Neurosurgery, cardiovascular and cerebrovascular disease, cosmetology and plastic surgery, pet hospital, hair transplant hair restoration and other medical fields. It is a necessary magnifier glass for doctors in fine examination and treatment or operation, which will be much better using the TTL loupes with LED headlamps.
- Careoptik Ergo TTL Prismatic Dental Surgical Loupes Features:

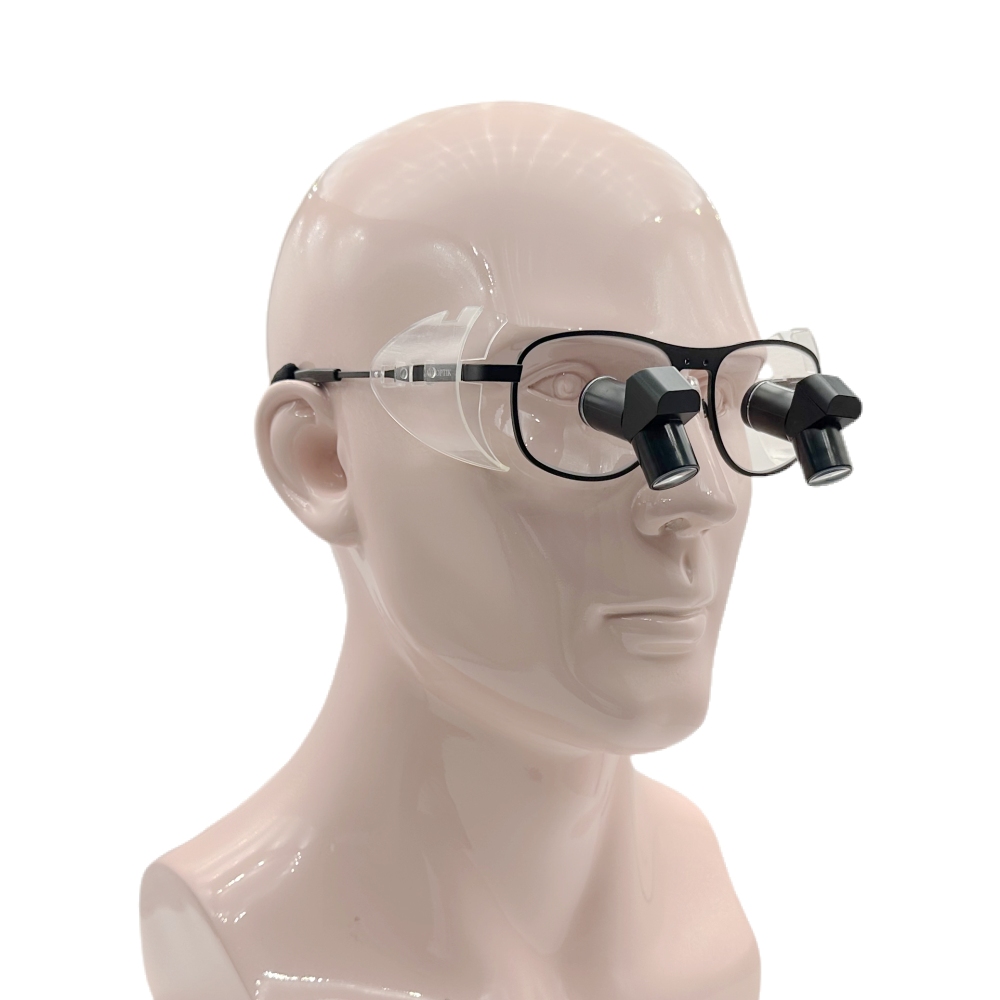

- Ergo TTL loupes is custom-made loupes. The loupe's barrel is an angle-conversion Design, loupes Barrels go through the frame's lens, which is super light and offers a wider field of view, They are mounted according to the buyer's pupil distance, and don't need to adjust anymore when the buyer uses it.
- Careoptik Ergo TTL Prismatic dental loupes surgical loupes binocular magnifier glasses 3.5X/4.5x/5.5x/6.5x are widely used in dentistry, ENT, Ophthalmology, Gynecology, meticulous examination, and general surgery, plastic surgery, hair transplant or pet hospital clinical departments, and are an effective visual aid product.

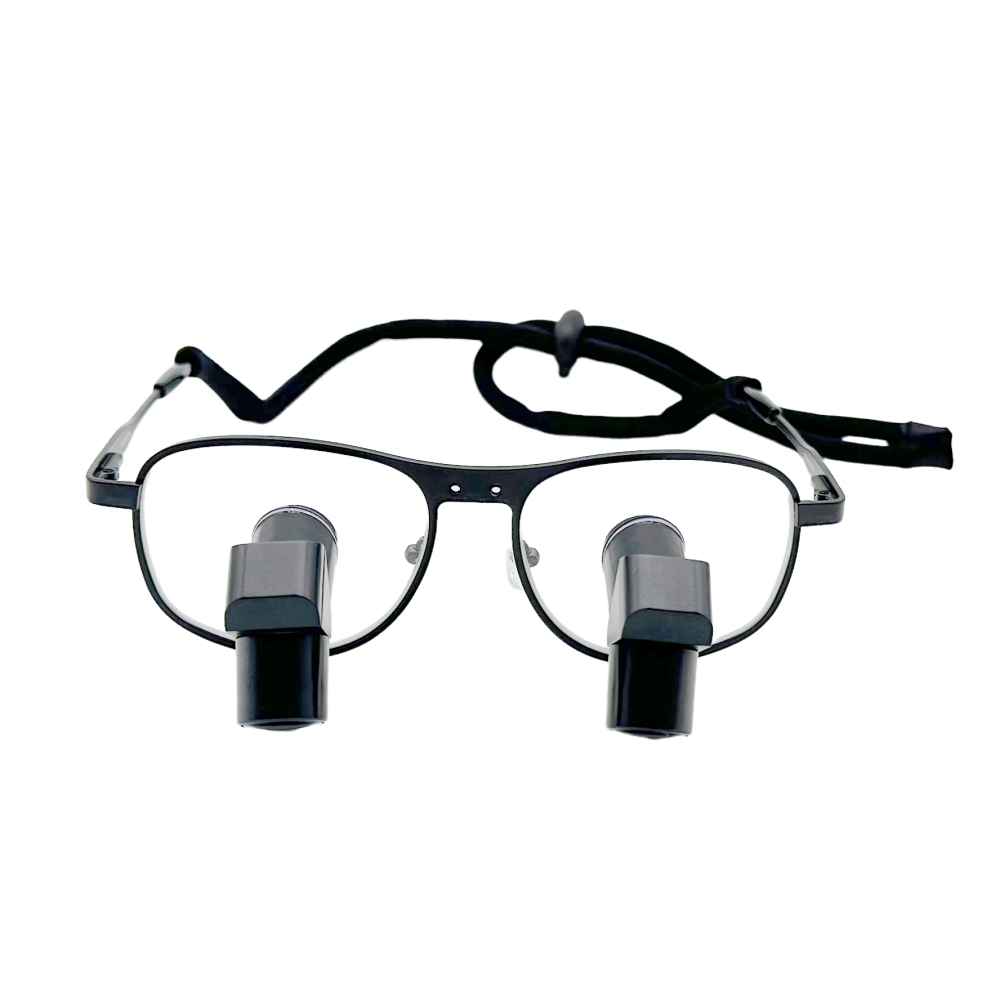

- CareOptik Ergo TTL loupes Pure Titanium Fame using high-quality Titanium material, high elasticity, high strength, long lifetime, and lightweight. The Titanium frame design is suitable for various sizes of heads and faces, comfortable to wear, The lenses are hard treatment PC lenses, have impact resistance, are not easy to scratch, and can effectively protect the user's eyes. Titanium frames also can be mounted on Prescription lenses (Rx Lens), and loupe barrels can be mounted on prescription lenses (Rx Lens).
- Mounting Prescription lens :
- CareOptik Ergo custom-made TTL dental surgical loupes can be mounted with the prescription lenses on loupes barrels and loupes frames, so, if you choose "mount prescription lens" "YES". we will mount the RX lens on loupes barrels and frames. so the cost is higher than our H series. Cylinder prescription lenses are acceptable.
Working Distance:
Working distance is the distance from your eyes to objects operated when you are in a normal working position. you can measure the distance from your eyes to the objects operated when you are in a normal position, and then choose the closer one (loupe's working distance covered a range, new design loupes have a larger depth of view)
Pupil Distance:
Download the App "PDCHECK AR" From the App Store of your smartphone. and then you can measure your PD easily. Get your Far/Near pupil distance,
Important Notice: Ergo TTL loupes should be Far Pupil distance. not near Pupil distance. For mounting high-quality Ergo TTL loupes, Please fill in Far and Near Pupil distance data.

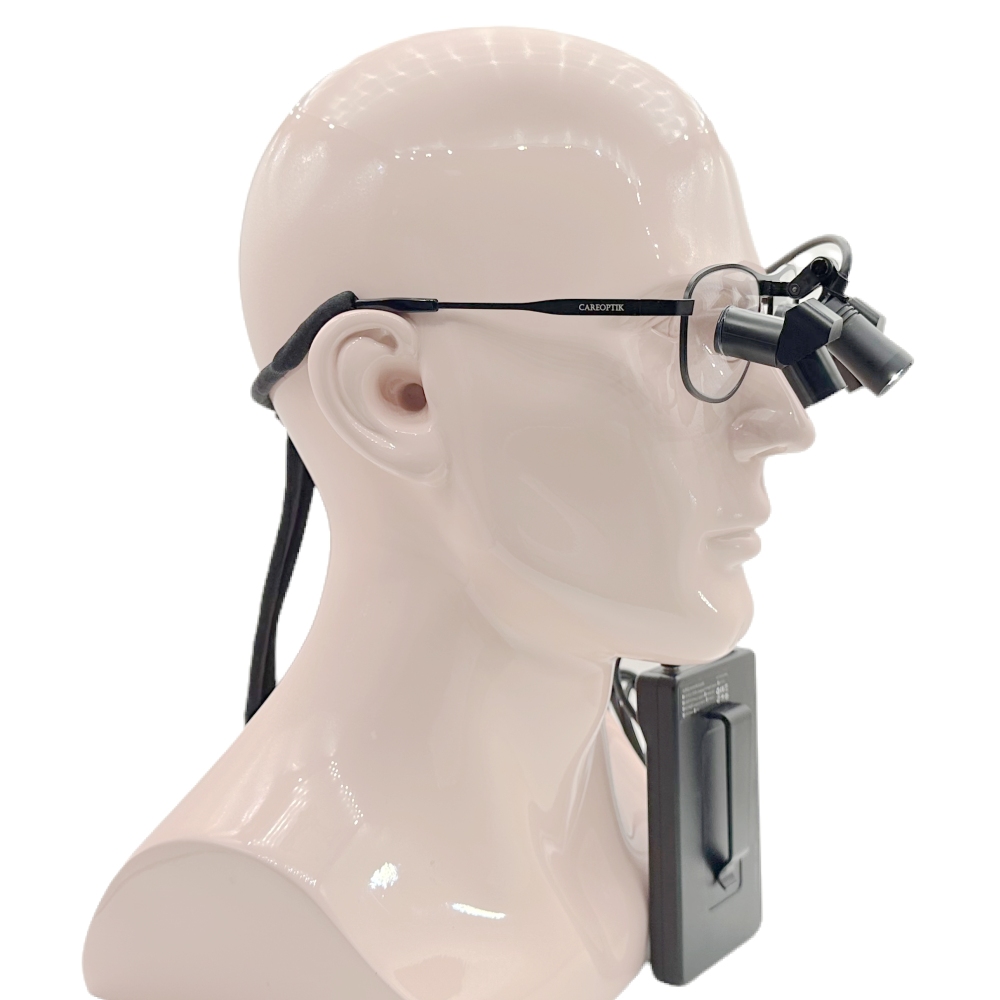

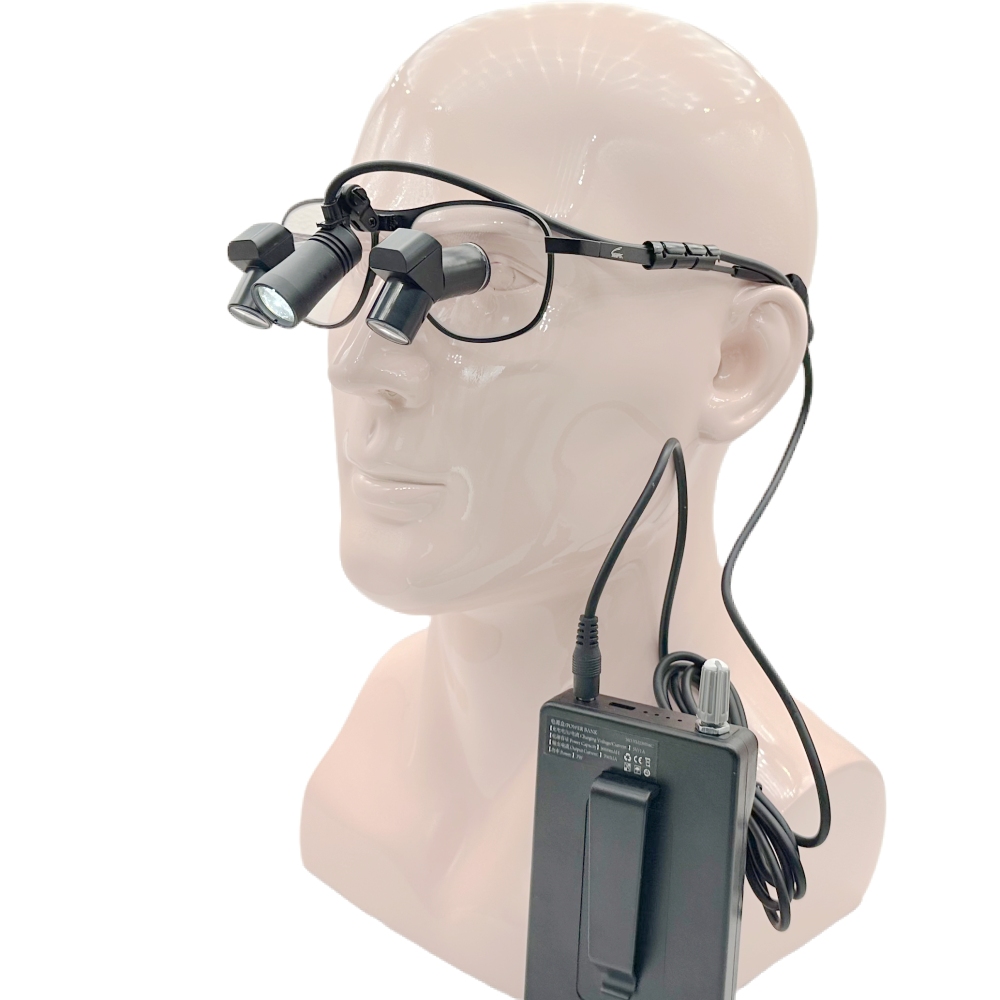

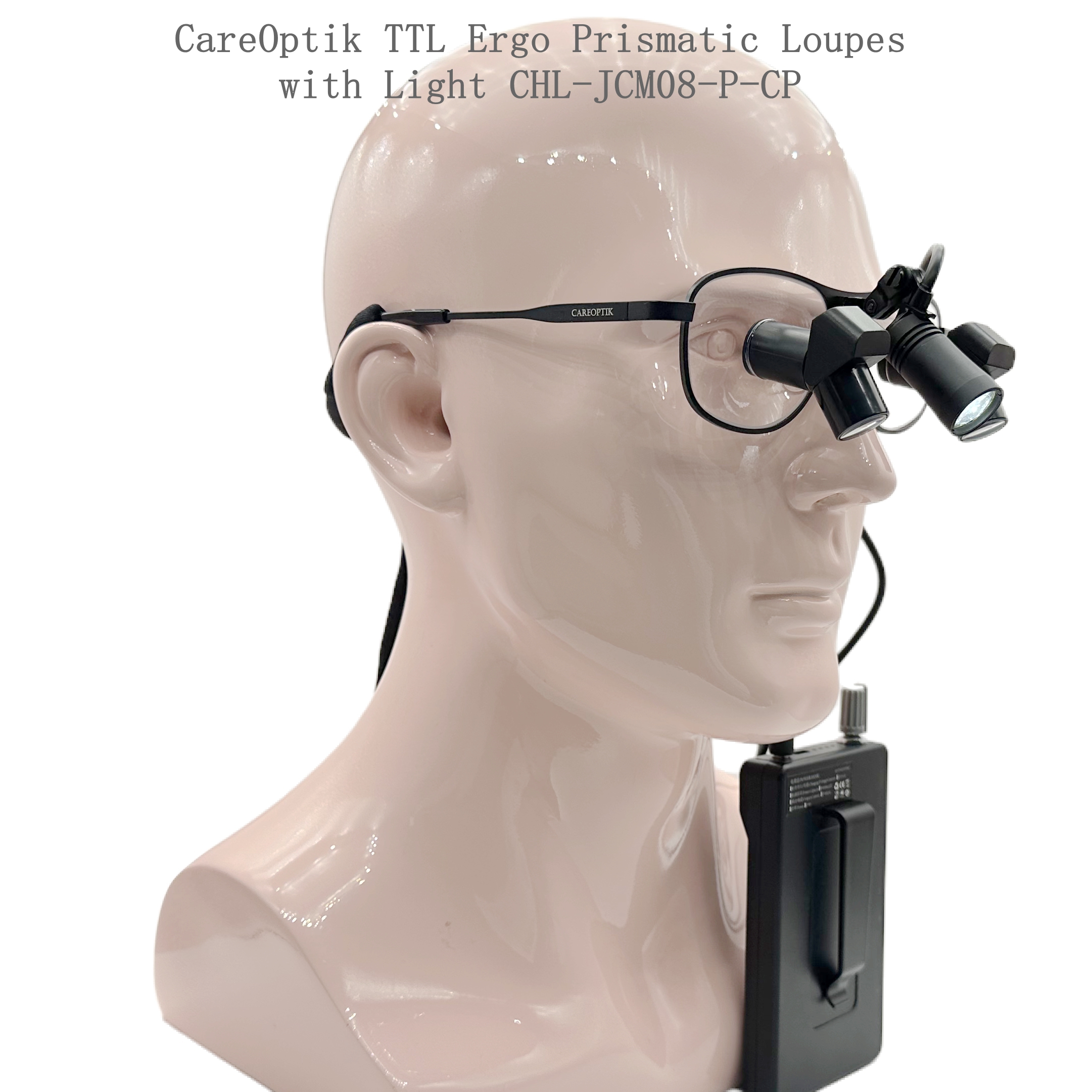

Medical Lights CHL-JCM-08P-CP
super quality dental surgical lamps medical lights CHL-JCM08P-CP
Portable dental surgical medical lamps CHL-JCM08P-CP, Super brightness, lighter weight design, pure white with organic filter.
Small and light designing LED lights, with different attached parts, can be attached to medical loupes, eyewear, goggles, and headbands with different attached parts.
Product model: CHL-JCM08P-CP
Color temperature：6000-6500k white light / 4000-45000k yellow light （with yellow filter)
Illuminance parameters:
Spot size Brightness Distance
4.5cm 95000lux @20cm
7.0cm 50000lux @30cm
10.5cm 40000ux @40cm
Weight： 9g
Light size： 3.3cm length dia： 1.7cm
Cable length： 150cm
bulb lifetime： 50000 hours
pure white color, brightness adjustable, clarity sharp edge light spots.
Battery packing:
Continue working for 10 hours with the highest brightness
Mirco USB recharge connector
Battery Capacity: 8000mha
Brightness adjustable
Charging time: 4 hours
Power capacity： 8000mAH
Usage time： 10 Hours
Charging interface： Type-c Connector
Charging time： 4 Hours
Power indicate: Yes
TTL Loupes Packing includes (accessory)
•Dental surgical loupes mounting on Frames
•Portable light with cable
•charger adaptor
•Battery packing
•Orange Filter
• Side Shields
• Headband strap
• Cleaning cloth
• manual
• ABS suitcase packing
